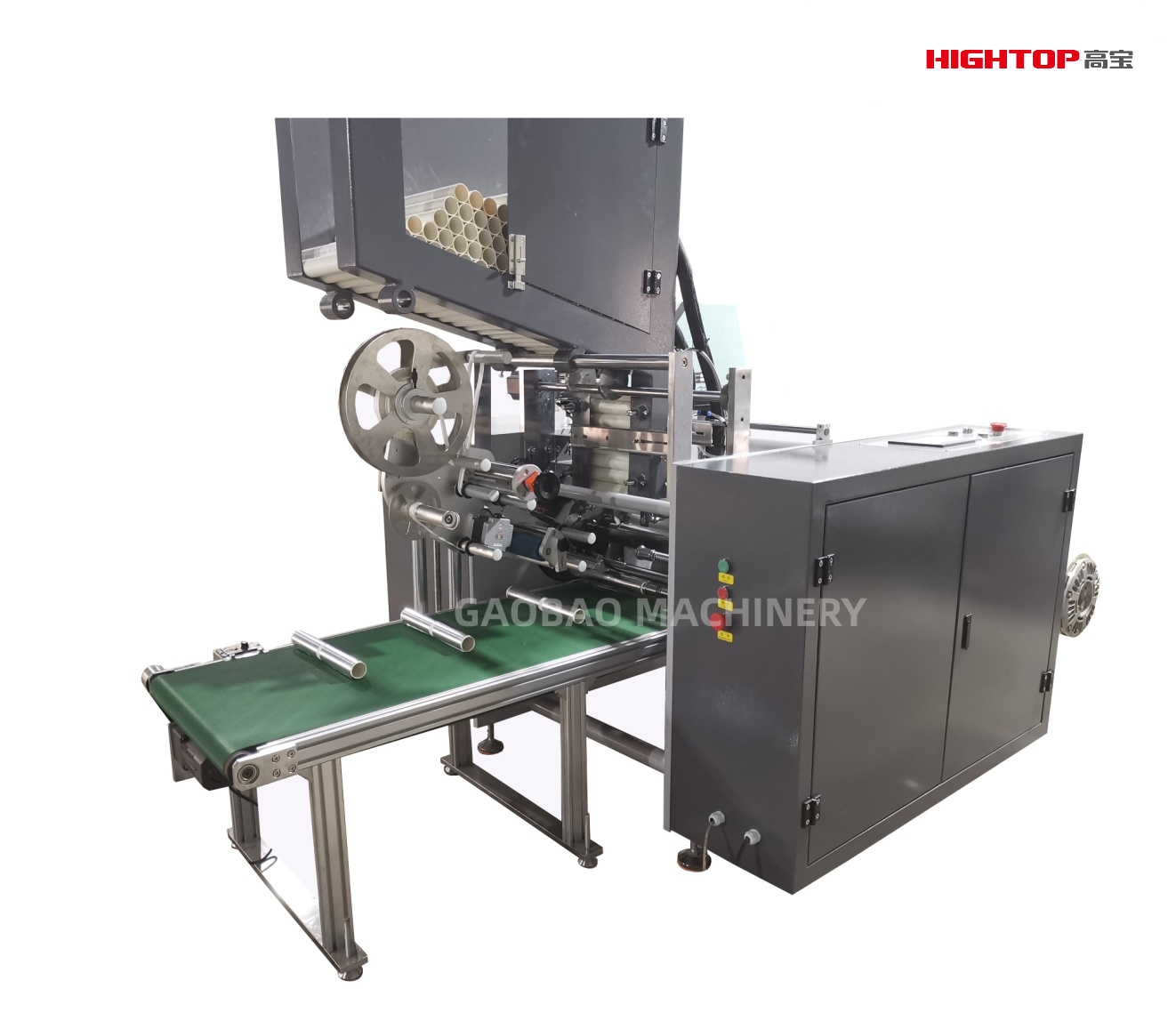

Automatic Aluminum Foil Cling Film Rewinding Machine

Automatic aluminum foil rewinding machine is use for rewinding the jumbo roll of aluminium foil / baking paper / cling bag into small roll. It adopts surface and center rewinding method, it can rewind the roll from 1 meter for house foil roll, kitchen foil roll, and catering foil roll etc.

Classificar:

Products

Slitter Rewinder

Sollutions&Applications

Aluminum Foil

Wide-Web

Aluminum Foil

E-mail Us：

sales1@gaobao-hightop.com

Tel/ WhatsApp / WeChat：

0086 18358728877

Message

Keywor:

Features
Specifications
Gallery
Video

- Commodity name: Automatic Aluminum Foil Cling Film Rewinding Machine
- Commodity ID: Automatic household
Automatic aluminum foil rewinding machine is use for rewinding the jumbo roll of aluminium foil / baking paper / cling bag into small roll. It adopts surface and center rewinding method, it can rewind the roll from 1 meter for house foil roll, kitchen foil roll, and catering foil roll etc.

Automatic aluminum foil rewinding machine is use for rewinding the jumbo roll of aluminium foil / baking paper / cling bag into small roll. It adopts surface and center rewinding method, it can rewind the roll from 1 meter for house foil roll, kitchen foil roll, and catering foil roll etc.

Application

Packaging

Unwinding unit and main machine part are packed separately. We use PP plastic wrapping the machine first. Then fix the machine into wooden pallet and pack them with wooden case.

After-sales service

We guarantee the quality of the main parts within 12 months. If the main parts go wrong without artificial factors within one year, we will freely provide them or maintain them for you. After one year, if you need to change parts, we will kindly provide you with the best price or maintain it in your site.

Exhibition

Width of material	200-450mm
Width of products	450-2600mm
Max Diameter of unwinding	Ф700mm
Max Diameter of rewinding	Ф90mm / max. length 300m
Minimum length of rewinding	1000mm
Core size of un-winder	3’’ or 6”
Core size of re-winder	30mm,35mm or 38mm （other size according to required）
Max Mechanical Speed	350m/min
Main motor	4kw
Air pressure	0.5Mpa
change motor and gear reducer	550W
Weight	1600kg
Installing dimension (LWH)	350018002100mm
