- Commodity name: FQA Aluminum Foil Laminated Composite Paper Roll To Sheets Slitting Cutting Machine With Stacker Automatic Collecting And Counting
- Commodity ID: FQA
The machine is suitable for many kinds of jumbo roll materials, such as 20g/m~400g/m kraft paper/ adhesive stickers/PVL/PET/Release paper/breathable film/Pearlized BOPP.

Usage:

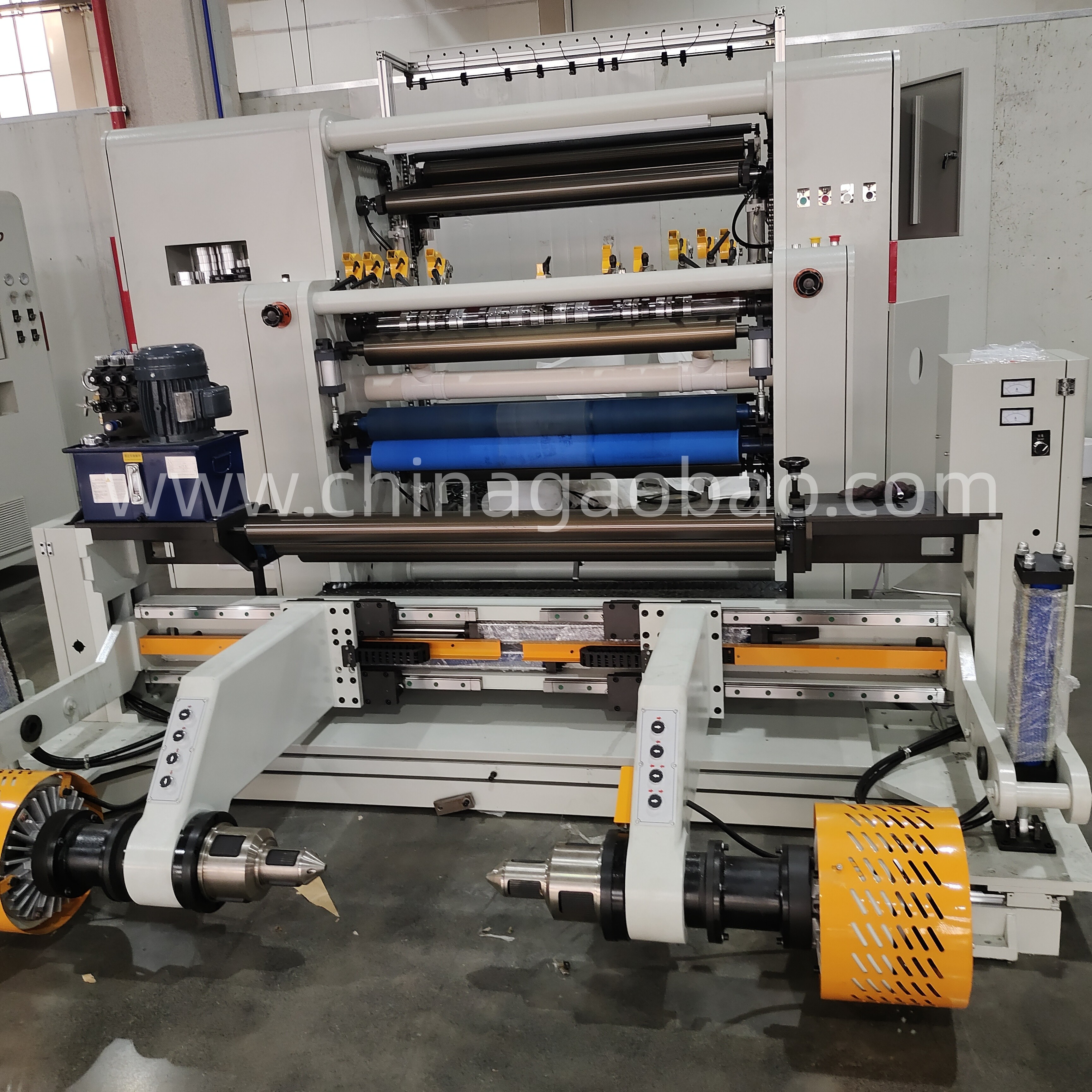

FQA slitting machine is a high speed Aluminum Foil slitter rewinder machine. This slitting machine adopts Servo motor control and automatic taper tension, central surface rewinding. This slitting machine can slit and rewind minimum 30mm width Aluminum Foil rolls. FQA Slitting Machine can slit jumbo roll materials rolls to small rolls, such as Aluminum Foil. It has the functions of automatic counting meter, automatic alarm, etc. Adopting A and B pneumatic shaft structure for rewinding, easy for loading and unloading.

Applications:

FQA Slitting Machine is suitable for many kinds of jumbo roll materials, such as Aluminum Foil.

Packaging

Unwinding unit and main machine part are packed separately. We use PP plastic wrapping the machine first. Then fix the machine into wooden pallet and pack them with wooden case.

After-sales service

We guarantee the quality of the main parts within 12 months. If the main parts go wrong without artificial factors within one year, we will freely provide them or maintain them for you. After one year, if you need to change parts, we will kindly provide you with the best price or maintain it in your site.

Exhibition
Key words:
- Slicers
- Rewinders

FQA slitting machine has different models, such as 1300mm, 1600mm,1800mm (It can be customized according to your materials) And it’s Min. width of slitting is 30mm. The Max. unwinding diameter is 1400mm and the Max. rewinding diameter is 1000mm.

Model	FQA-1300	FQA-1600	FQA-1800
Max.Width of unwinding roll	1300 mm	1600 mm	1800mm
Max. Diameter of unwinding roll	φ1400 mm	φ1400 mm	φ1400mm
speed	≤350/min	≤350m/min	≤350m/min
Precision	±0.2 mm	±0.2 mm	±0.2 mm
Total Power	24kw	26kw	30kw
Weight	4000kg	4500kg	5500kw
Dimension(LWH)	3300x3150x1930mm	3300x3450x1930mm	3300x3650x1930mm
