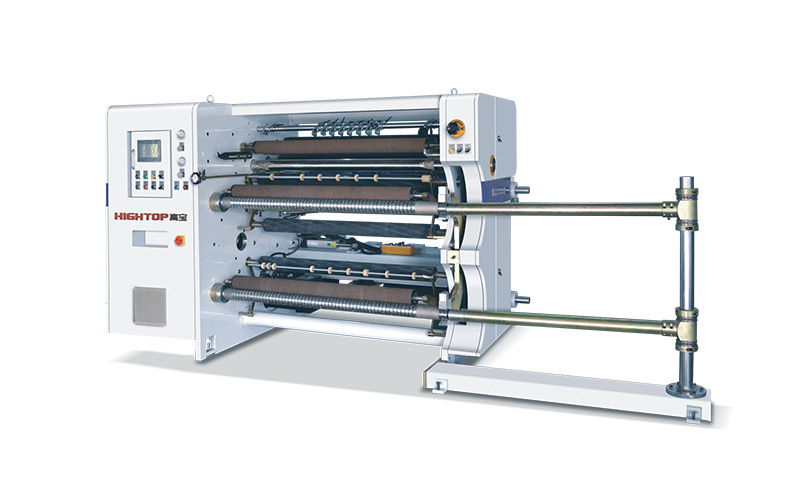

BDFQ Paper Slitter Rewinder Machine for Paper Drinking straw


The BDFQ-D model paper roll to various width rolls slitter rewinder machine is a center and surface rewinding type slitter machine.

Classificar:

Products

Slitter Rewinder

Sollutions&Applications

Paper applications

Slitter rewinder

Wide-Web

Paper applications

Keyword :

  • Features
  • Specifications
  • Gallery
  • Video
    • Commodity name: BDFQ Paper Slitter Rewinder Machine for Paper Drinking straw
    • Commodity ID: BDFQ-2

    The BDFQ-D model paper roll to various width rolls slitter rewinder machine is a center and surface rewinding type slitter machine.

    Usage:

    The BDFQ-D model paper roll to various width rolls slitter rewinder machine is a center and surface rewinding type slitter machine. This type slitter machine can slit and rewind minimum 5mm width paper rolls. It is mainly used to slit the kraft, cardboard paper, PE coated cardboard paper rolls to narrow width rolls. It is widely using in the beverage & milk paper straw manufacturing, food wrapping paper rolls and so on products industry.

    Applications:

    BDFQ Slitter rewinder machine is mainly used to slit the kraft, cardboard paper, PE coated cardboard paper rolls to narrow width rolls.

    BDFQ

    Packaging

    Unwinding unit and main machine part are packed separately. We use PP plastic wrapping the machine first. Then fix the machine into wooden pallet and pack them with wooden case.

    Packaging

    After-sales service

    We guarantee the quality of the main parts within 12 months. If the main parts go wrong without artificial factors within one year, we will freely provide them or maintain them for you. After one year, if you need to change parts, we will kindly provide you with the best price or maintain it in your site.

    Exhibition

    Exhibition

  • Model

    BDFQ-1100D

    BDFQ-1300D

    BDFQ-1600D

    Max. Width of unwinding

    1100mm

    1300mm

    1600mm

    Max. diameter of unwinding

    1400mm

    1400mm

    1400mm

    Min. Width of slitting

    5mm

    5mm

    8mm

    Max. Diameter of rewinding

    600mm

    600mm

    600mm

    Speed of slitting

    ≤350m/min

    ≤350m/min

    ≤350m/min

    Total Power

    6.5kw

    8.5kw

    10.5kw

    Power supply

    380V/50hz

    380V/50hz

    380V/50hz

    Overall dimension

    3500*1500*1500(mm)

    3500*1800*1500(mm)

    3500*2100*1500(mm)

    Weight

    3300kg

    3600kg

    3800kg

  • BDFQBDFQBDFQ
